Dr. Camscope 3D Laparoscopy System
Depth perception by 3D stereoscopic image.
First-generation 3D video digital laparoscopy system with 3-chip CCD camera, convergence control and four HDMI outputs.
- Technology
- 3D Full-HD laparoscopy, 3-chip CCD
- Brand
- Sometech
- Model
- Dr. Camscope 3D (1st Gen.)
- Condition
- Brand new
- Origin
- South Korea
- Warranty
- 12 months manufacturer warranty
- Lead time
- 2–4 weeks from order confirmation
Applications
Price on request
Shipping, customs documents and training are quoted per destination.
- Warranty & training included
- Worldwide shipping from Korea
- Registration documents provided
Overview
Dr. Camscope 3D is Sometech's first-generation 3D video digital laparoscopy system, delivering 1920×1080p 60 Hz high-definition imaging with true stereoscopic depth perception.
Convergence control is based on a 5 cm main working distance and can be adjusted from 3 cm (short) to 5 cm (long) with the supplied jig, so the system stays effective at both short and long range. Binocular disparity is adjusted on a simple touch screen menu after scope replacement, and white balance is set automatically.
The scope integrates its LED light with the camera cable, which keeps cabling simple, while a high-resolution rod-lens design developed in-house delivers the 3D image. The Solebeam LED light source runs at 6,500 K to reduce eye fatigue and over 47,000 lux for easy visibility during surgery.
Key features
1920×1080p @60 Hz
High-definition 3D image with depth perception by stereoscopic display.
Convergence control
Adjustable from 3 cm to 5 cm working distance with the JIG tool for short and long range surgery.

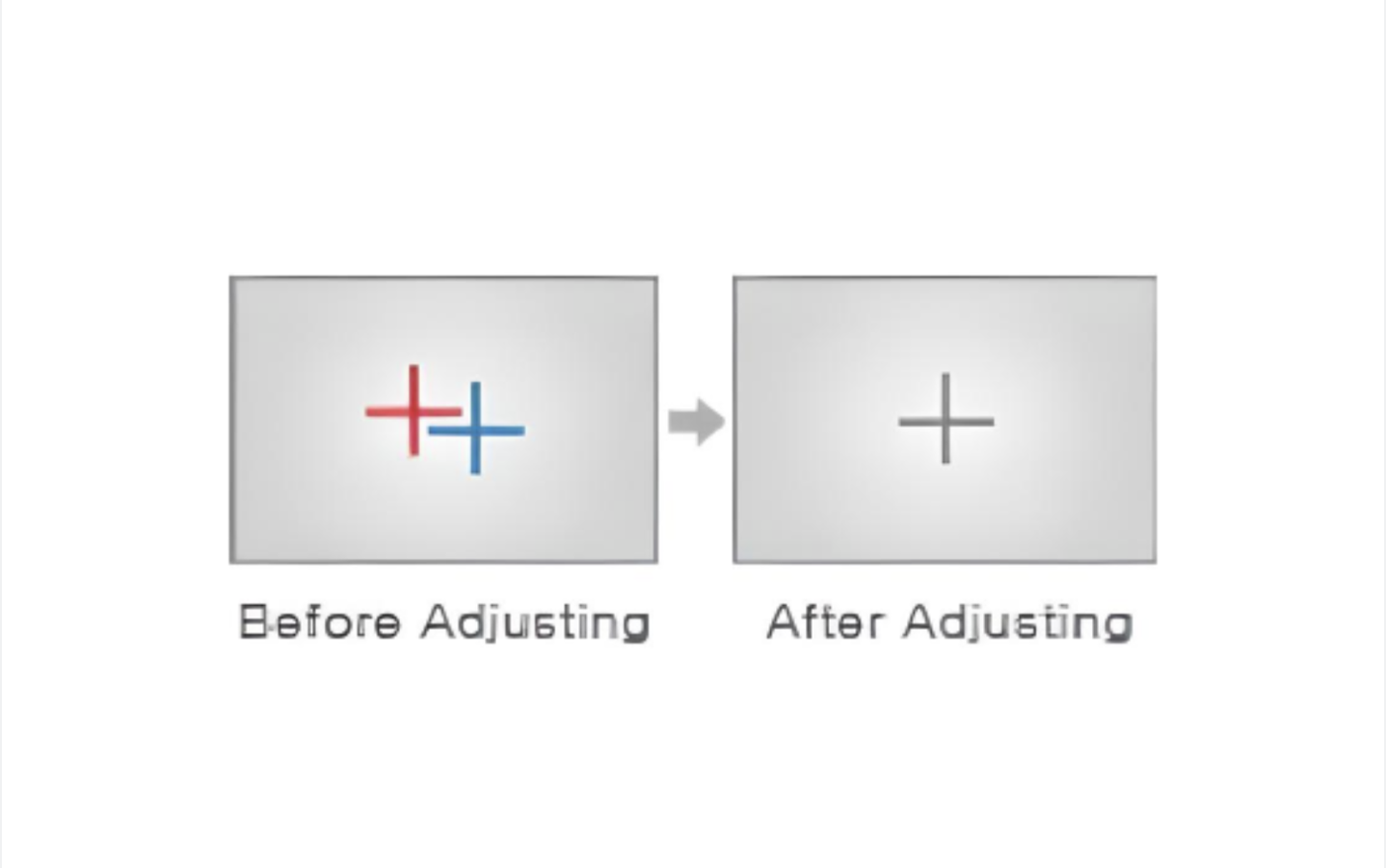

Binocular disparity control
Two cameras mimic human binocular disparity; adjustment jig plus touch-screen menu after scope replacement.
White balance & rotate
Automatic white balance, plus 180° image rotation for the operating environment.
4 HDMI outputs
Three HDMI-out for 3D image and one HDMI-out for 2D image.
Scope integrated with LED light
Light cable integrated with the camera cable for simple set-up.

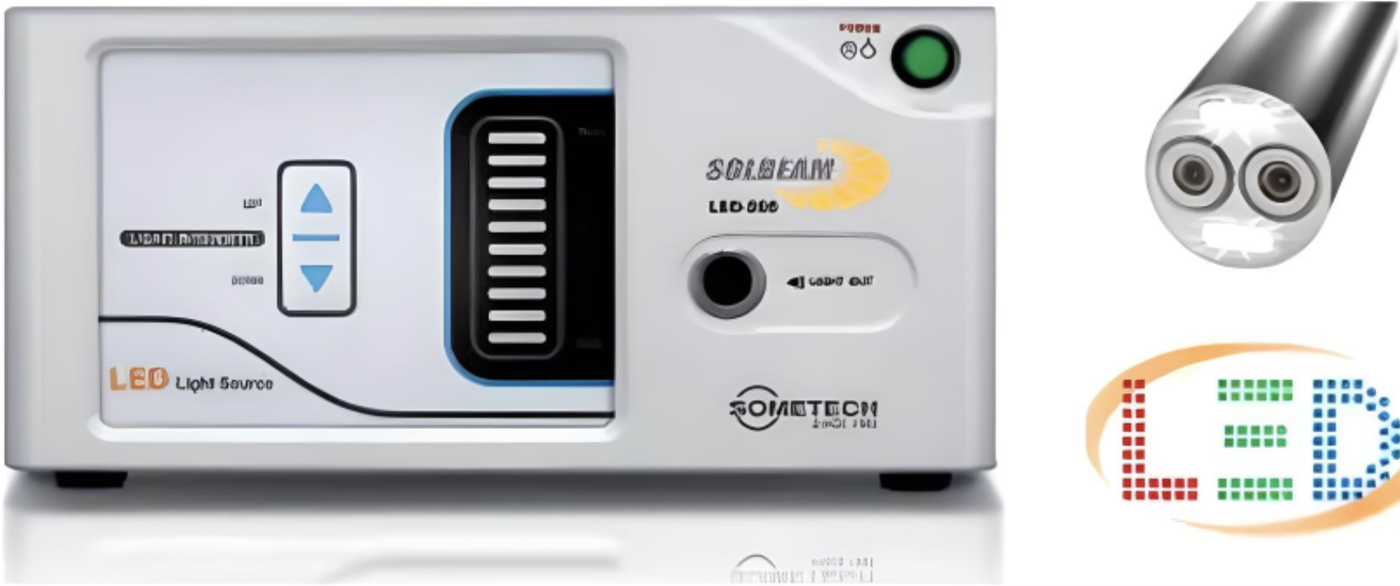

Solebeam LED light source
6,500 K colour temperature to reduce eye fatigue, over 47,000 lux intensity.
High-resolution rod lens
Independently developed rod lens implements high-resolution 3D laparoscopy.
Clinical indications
General surgery, obstetrics and gynaecology, ENT / plastic and dermatologic procedures.
Why this device
3-chip CCD for natural colour and deep depth perception, with a short learning curve and high-quality 0° and 30° scopes.
Specifications
Connectivity
- Outputs
- 4 × HDMI (3 × 3D, 1 × 2D)
Imaging
- Resolution
- Full-HD 1920 × 1080, 60p
- Sensor
- 3-chip CCD
Light source
- Type
- Solebeam LED, 6,500 K, 47,000+ lux
Optics

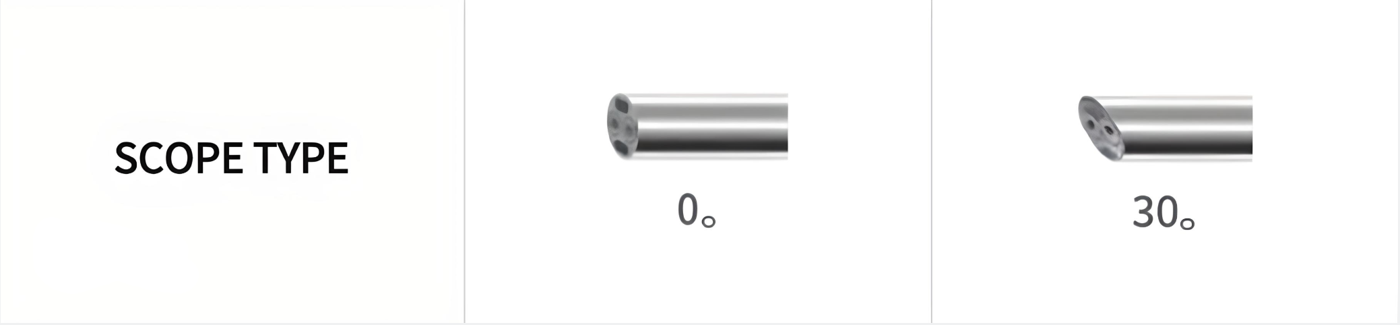

- Scope angles
- 0° and 30°
