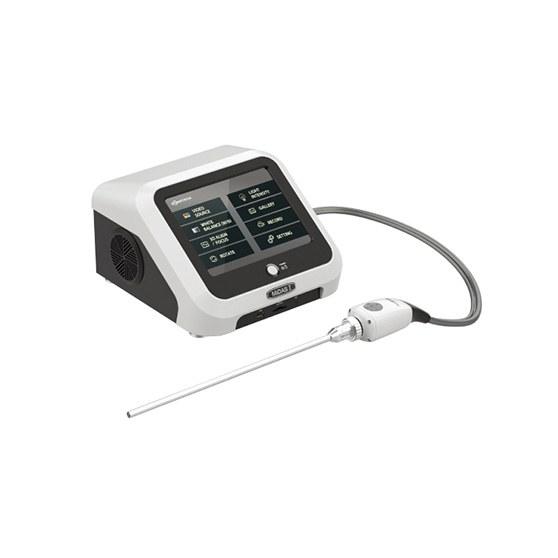

COT-200 3D Laparoscopy System (Chip-On-Tip)
Chip-On-Tip 3D imaging for minimally invasive surgery.
Chip-On-Tip 3D laparoscopy system with the MIDAS I all-in-one unit, integrated recording and an optional glasses-free 3D console monitor.
- Technology
- 3D Chip-On-Tip laparoscopy
- Brand
- Sometech
- Model
- COT-200
- Condition
- Brand new
- Origin
- South Korea
- Warranty
- 12 months manufacturer warranty
- Lead time
- 2–4 weeks from order confirmation
Applications
Price on request
Shipping, customs documents and training are quoted per destination.
- Warranty & training included
- Worldwide shipping from Korea
- Registration documents provided
Overview
COT-200 places the image sensor at the tip of the scope — Chip-On-Tip technology — for optimal camera performance in minimally invasive imaging.

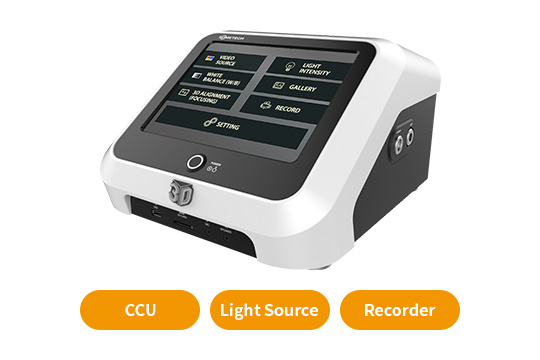

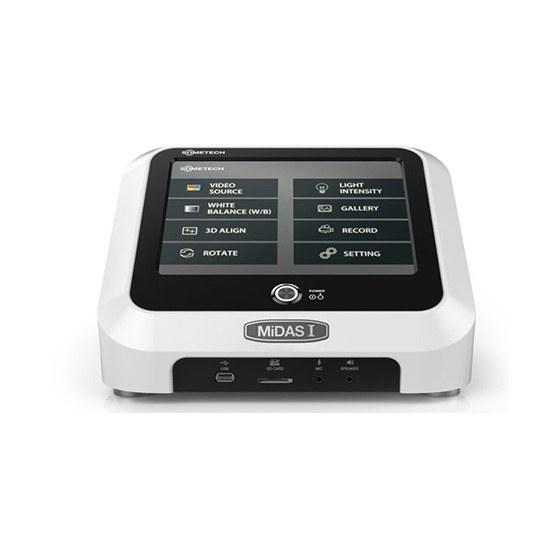

The MIDAS I main unit again combines CCU, light source and recorder, removing the need for separate boxes in the tower. It offers binocular disparity control, a user-friendly GUI, video recording and playback, light intensity control, 3D display, alignment and rotation, an integrated recording system and multiple outputs (3 × HDMI plus HD-SDI left and right).
Stereoscopic depth perception allows more accurate and precise operation with natural colour, a short learning curve and no dizziness on long operations. With the optional glass-free 3D console monitor the whole operating room layout can be simplified.
Key features
Chip-On-Tip technology
Sensor at the scope tip enables optimal minimally invasive imaging performance.
All-in-one MIDAS I unit
CCU + light source + recorder — no separate main unit, light source and recorder.
Integrated recording system
Video recording and playback with light intensity and white balance control.
3D display control
3D alignment, 3D play, 3D rotate and binocular disparity control from the GUI.

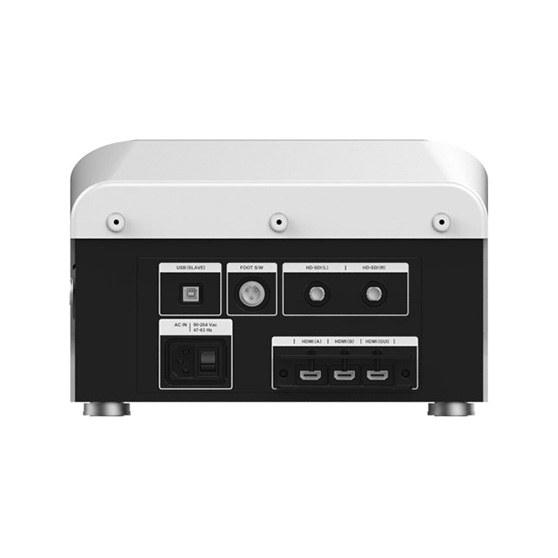

Various video outputs
3 × HDMI plus HD-SDI (L) and HD-SDI (R).

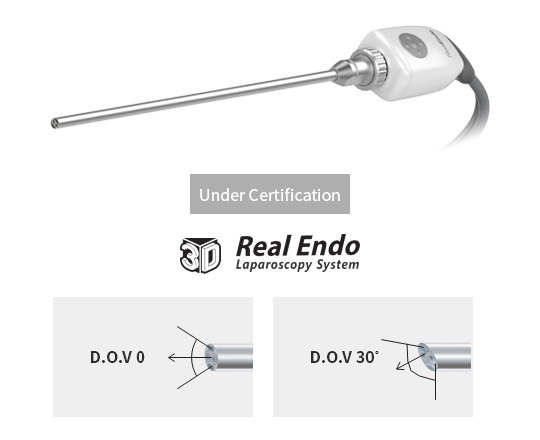

Stereo laparoscopes
Ø10 mm 0° and Ø10 mm 30° with user-friendly key buttons on the camera head.
Optional 3D console monitor
Glasses-free console monitor optimises the operating room and removes disparity adjustment.
Clinical indications
General surgery, cardiothoracic surgery, obstetrics and gynaecology and urology — the same procedure range as the VLS-200 platform.
Why this device
Chip-On-Tip sensor placement keeps the optical path short for crisp Full-HD imaging while the all-in-one unit clears space in the OR tower.
Specifications
Connectivity
- Outputs
- 3 × HDMI, HD-SDI (L), HD-SDI (R)
Imaging
- Resolution
- Full-HD 1920 × 1080, 30p
- Sensor
- Chip-On-Tip
Main unit
- Model
- MIDAS I — all-in-one
Optics
- Scope
- Ø10 mm 0° / Ø10 mm 30°
