VOMS-400 S/B 4K 3D Operating Microscope (Spine / Brain)
4K 3D visualisation for neurosurgery and spine.
The spine and brain configuration of the 4K RealMicro platform — Ultra-HD 3D imaging, motorised XYZ control and a programmable foot pedal.
- Technology
- 4K 3D video digital operating microscopy
- Brand
- Sometech
- Model
- VOMS-400 (Spine/Brain)
- Condition
- Brand new
- Origin
- South Korea
- Warranty
- 12 months manufacturer warranty
- Lead time
- 2–4 weeks from order confirmation
Applications
Price on request
Shipping, customs documents and training are quoted per destination.
- Warranty & training included
- Worldwide shipping from Korea
- Registration documents provided
Overview

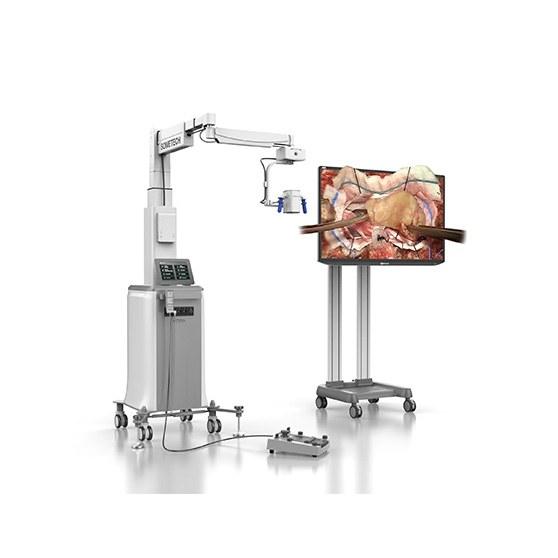

VOMS-400 (Spine/Brain) applies Sometech's 4K 3D visualisation to neurosurgical and spinal procedures — the configuration the company exhibited at the Global Spine Congress.
A true head-up posture is maintained on the 4K 3D monitor throughout surgery, eliminating the neck pain, back pain, eye strain and headache associated with eyepiece microscopy. The whole OR team observes the same real-time 3D image, which makes intra-operative cooperation and post-operative teaching straightforward.
Patented lens technology minimises chromatic aberration while the imaging engine holds fine focus across a wide field. The motorised turret, C-curve arm, image-shake reduction and one-touch caster lock keep the system stable and easy to position in a crowded theatre.
Key features
True head-up posture
Full-procedure head-up work on a 4K 3D monitor.
Minimised distortion
Patented lens technology minimises chromatic aberration.
Fine focusing, wide field of view
Patented image processing keeps the immediate and surrounding area crystal clear.

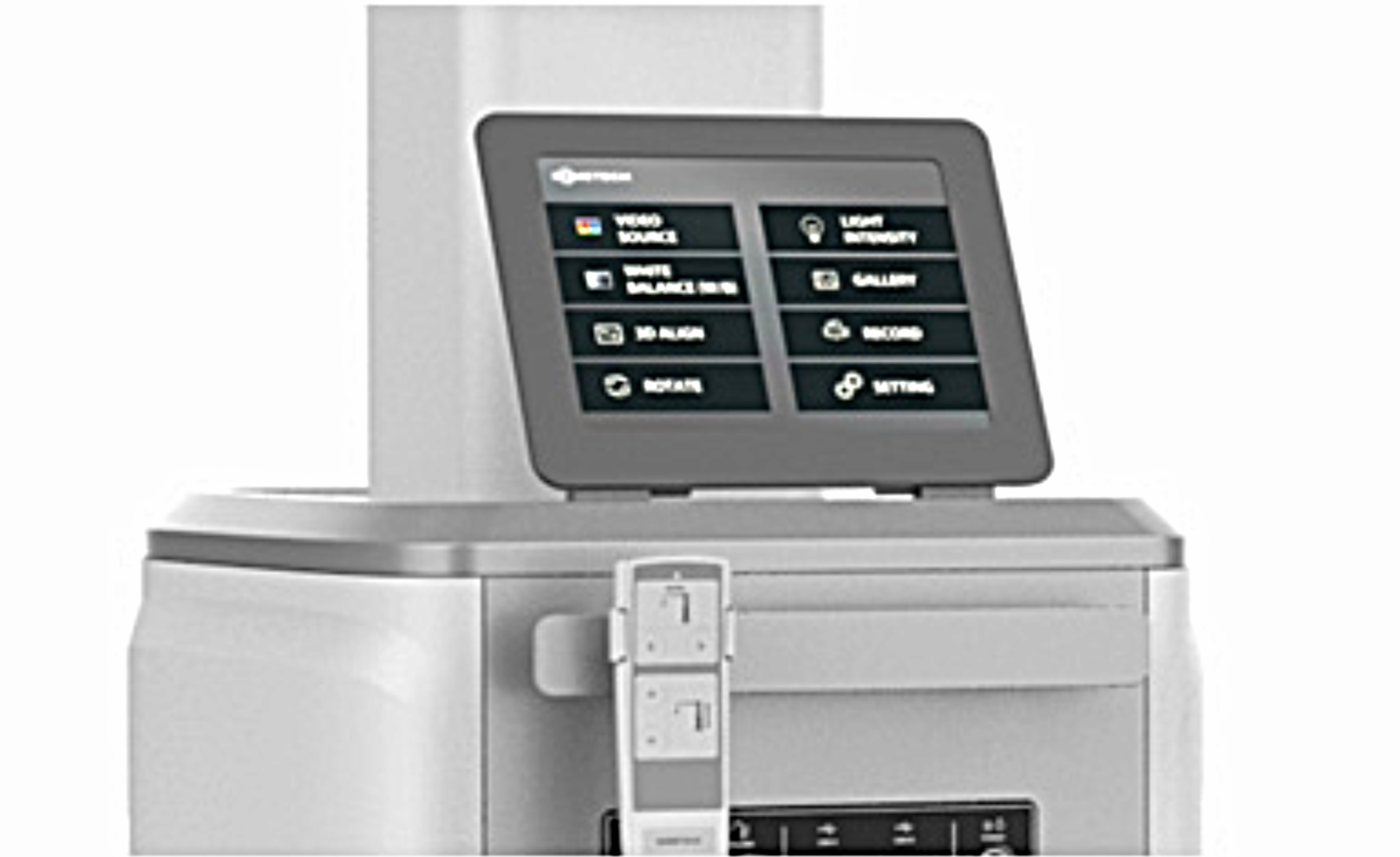

Touch screen GUI
10.4" wide TFT touch LCD with video colour control, light intensity, 3D alignment and rotation.
Programmable foot pedal
Zooming, recording and alignment mapped to the pedal.
Optimising OR space
Motorised vertical, horizontal and tilting extension arm with X/Y movement and image-shake reduction.
Microscope head
Multi-lens 20/40 mm, motorised movement on the foot pedal, integrated wide-angle viewer.
Clinical indications
Craniotomy, brain tumour, cerebrovascular surgery, spinal stenosis and spinal cord tumour; also ENT, plastic and dermatologic microsurgery.
Why this device
Presented at the Global Spine Congress 2022 — 4K depth perception with an ergonomic, motorised arm designed for long neurosurgical cases.
Specifications
Control

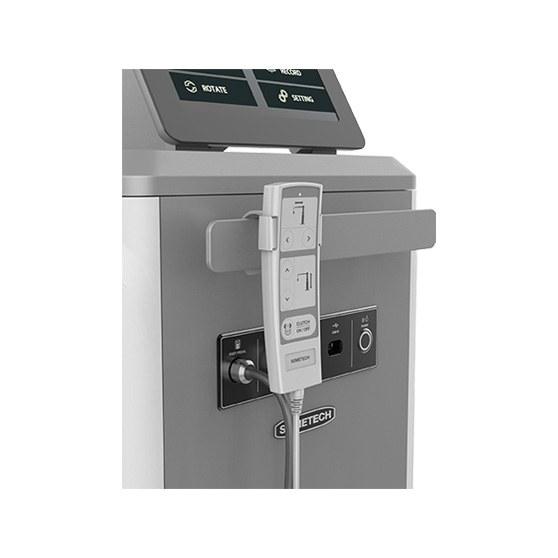

- User interface
- 10.4" TFT touch LCD, handheld keypad, programmable foot pedal
- XYZ control
- Motorised
Imaging
- Video output
- Ultra High Definition 3840 × 2160, 60p
- 3D format
- Side by side
Optics
- Optical zoom
- Two-type turret lens — D.L 20 mm (40×), D.L 40 mm (20×)
- Digital zoom
- 1.0× – 2.0×
- Working distance
- 200 mm
Recording
- Format
- MPEG-4 / H.264 (AVI)
